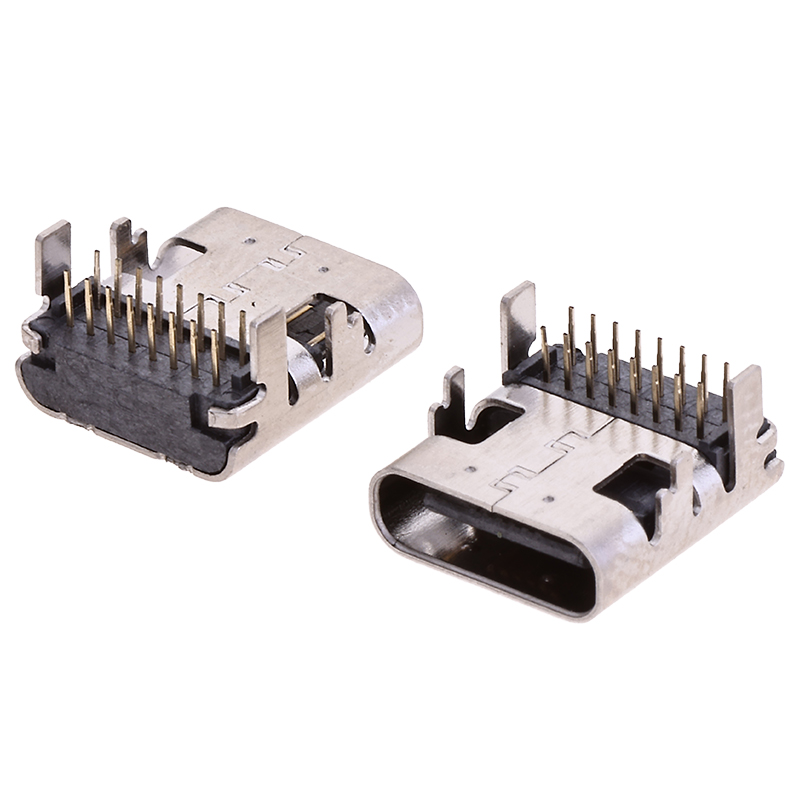

TYPE-C16PIN防水母座板上粉末冶金L=6.50MM

1.Material:

1.1 Housing: LCP/9T

1.2 Contact:C7025,t=0.20/0.25mm

1.3 Shell: SUS304

2.ELECTRICAL:

2-1:CURUENT RATAING:VBUS AND GND CONTACTS RATED AT 1.25A

PARALLELED FOR A TOTAL OF 3A/5A

2-2:INITIAL CONTACT RESISTANCE :40 MEGOHMS

2-3:DIEELECTRIC WITHSTANDING VOLTAGE:100V AC MIN

3.MECHANICAL CHARACTERISTICS:

3-1:MATING FORCE:5~20N

3-2:UNMATING FORCE:8~20N(INITIAL),6~20N(AFTER 10000 CYCLES)

3-3:FREQUENCE:200±50 CYCLES /HOUR,10000 CYCLES

3-4:OPERATING TEMPERATURE;-40*~80*

4.WATER RESISTANCE：IPX7.
