电气特性:Electrical:
1.额定电流:Current Rating1.5A/contact terminal
2.额定电压:Voltage Rating30V DC
3.接触阻抗:Contact Resistance30 milliohms MAX
4.耐电压:Dielectnic Withstanding Voitage:500 V AC AT Sea Levol
5.绝缘阻抗:Lnsulation Resistance:1000MEGA ohms MIN
物理性能:Mechanical:
1.插拔力:Cnnector Mate and Unmate ForceMate force:3.57kgf(MAX) Unmate force:1.02kgf(MIN)
2.端子保持力:Terminal Retenion1.2kgf(MIN)
原材料:Matorial:
1.塑胶:Housing:Hing TemperatureTnermaplastics, U1 94V-0LCP White/Black
2.端子:Contact:Copper Alloy C5191
3.外壳:Shell: Copper Alloy C2680
详细图纸规格书下载：
|
序号 |
型号 |
规格 |
PDF下载 |
3D下载 |
|
1 |
ZDX-MFMS05MC15 |

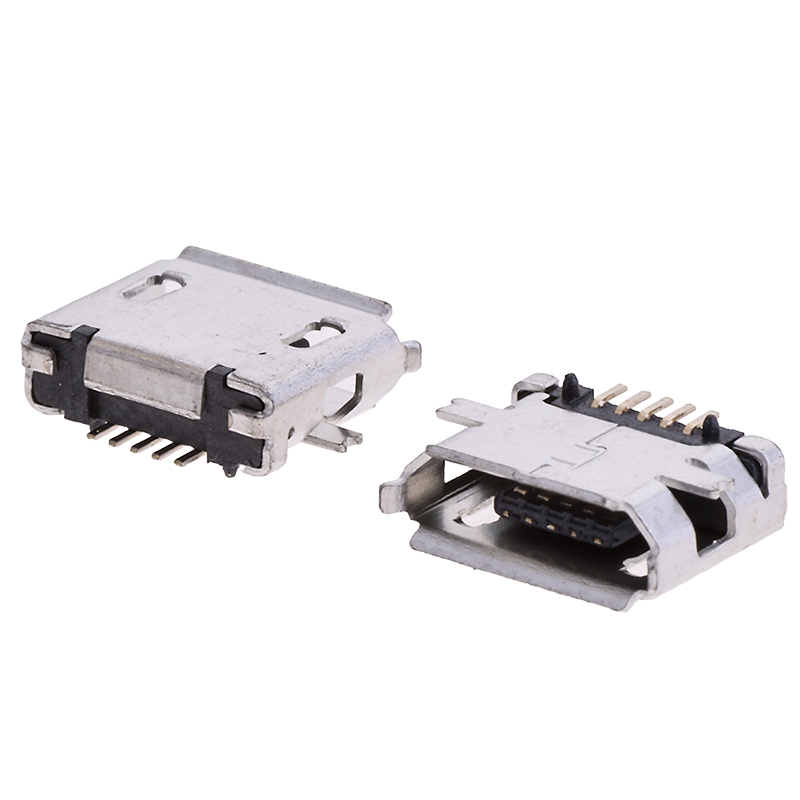

USB MICRO2PIN母座前插后贴间距5.90MM卷边 |
|
|
|
2 |
ZDX-MFMS05MC14 |
USB MICRO2PIN母座前插后贴间距5.90MM卷边-大电流 |
|
|
|
3 |
ZDX-MFMS05MC17 |
USB MICRO2PIN母座固定脚端子全贴片卷边-大电流 |
|
|
